1955 and later Chevrolet Passenger T5 Transmission Adapter (GM T5 with Ford bolt pattern)

This T5 transmission adapter allows you to adapt a GM T5 with the Ford bolt pattern to your Chevrolet passenger car bell housing. Our transmission adapter is designed specifically for a Chevy bell housing with the Muncie or Saginaw bolt pattern.

The adapter positions the clutch disc in the proper place on the input shaft. No modifications are required on the input shaft or clutch disc for installation.

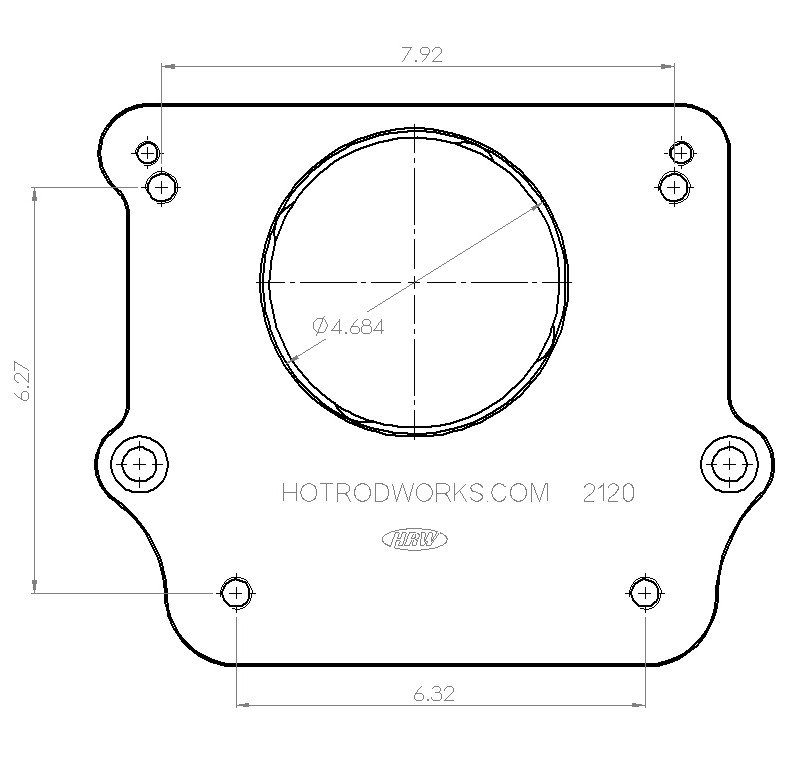

This adapter has a 4 11/16″ diameter transmission register.

This transmission adapter kit contains:
– (1) Adapter Plate
– (2) 3/8-16 x 2 ¼ Studs
– (2) 3/8 lock washers
– (2) 3/8-16 nuts
– (2) 1/2-13 x 2 studs
– (2) 1/2-13 x 1 ¼ cap screw
– (2) 1/2-13 x 1 ¼ flat head screws
– (2) 1/2-13 nuts
– (4) ½ lock washers

Our transmission adapter kit is 100% made in the USA. Our adapter plates are precision-machined from high strength 7075 aluminum alloy.

Please read further to ensure this product suits your needs.

Examples of these transmissions are:
1986 Chevrolet Astro Van
1993-1995 Chevrolet S10
1996-2002 Chevrolet Camaro V6

Examples of the Chevrolet bell housings include the following casting numbers:
3836741
3701433
3835201
3739585
3847679
3899621
462606

PLEASE NOTE:
1) This transmission adapter kit requires a transmission with an input shaft length of 7 1/8” from the trans mounting surface to the end of the shaft. If your transmission input shaft is shorter, you should install an extended pilot bushing into the crank shaft.
2) On manual clutch applications the throw out bearing sleeve on the bearing retainer need’s to be shortened. This is included in the instructions.

Is this Ford pattern T5 to Chevrolet Muncie Bell Housing Transmission Adapter exactly what you’re looking for? Add this product to your cart or call us at (208) 455-7971 to order today!

SKU 2120
