1948-1967 Chevrolet Pickup T5 Transmission Adapter (GM T5 with Ford bolt pattern) (2120AD)

This T5 transmission adapter allows you to adapt a GM T5 with the Ford bolt pattern to your 1948-1967 Chevrolet pickup bell housing.

The adapter positions the clutch disc in the proper place on the input shaft. No modifications are required on the input shaft or clutch disc for installation.

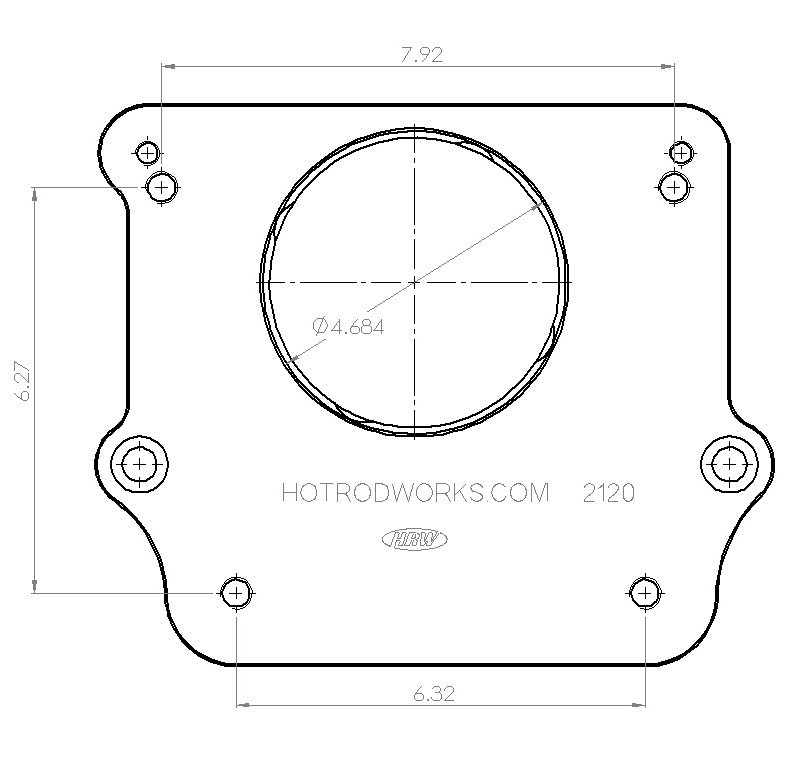

This adapter has a 4 11/16″ diameter transmission register.

This transmission adapter kit contains:

(1) #2120 Adapter Plate

(2) 3/8-16 x 2 ¼ Studs

(2) 3/8 lock washers

(2) 3/8-16 nuts

(2) 1/2-13 x 2 studs

(2) 1/2-13 x 1 ¼ cap screw

(2) 1/2-13 x 2 flat head counter sink screws

(4) 1/2-13 nuts

(6) ½ lock washers

Our transmission adapter kit is 100% made in the USA. Our adapter plates are precision-machined from high strength 7075 aluminum alloy.

Please read further to ensure this product suits your needs.

Examples of these transmissions are:

1986 Chevrolet Astro Van

1993-1995 Chevrolet S10

1996-2002 Chevrolet Camaro V6

Examples of the Chevrolet Pickup bell housings include the following casting numbers:

3701433

3835201

PLEASE NOTE:

1) This transmission adapter kit requires a transmission with an input shaft length of 7 1/8” from the trans mounting surface to the end of the shaft. If your transmission input shaft is shorter, you should install an extended pilot bushing into the crank shaft.

2) On manual clutch applications the throw out bearing sleeve on the bearing retainer need’s to be shortened. This is included in the instructions.
